AT600N-TBBVMS TAIL BOOM BRACE VIBRATION MANAGEMENT SYSTEM

AT600N-TBBVMS

TAIL BOOM BRACE VIBRATION MANAGEMENT SYSTEM
FOR ALIGN TREX 600 NITRO SERIES HELICOPTERS

Item Number: AT600N-TBBVMS

Material: Aluminum 6061-T6, Stainless Steel 17-4PH
Models: all ALIGN TREX 600 Nitro series.

Note: the TREX 600 Nitro Series Tail Boom Brace Vibration Management System is the ideal solution for preventing the
problematic loosening and resultant failure of the tail boom braces caused by the high-vibration nature of the Nitro
helicopter. Due to the caustic and high-frequency vibration environment of the Nitro engine, this upgrade is a

necessary
enhancement to maintain the structural integrity and performance of the helicopter mechanics, without continuous
maintenance required.

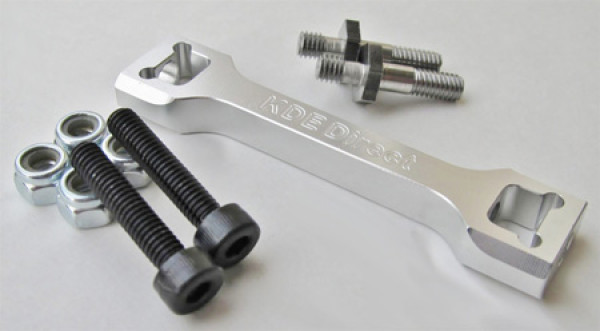

Includes:
- One (1) TREX 600 Nitro Series Aluminum Rear Frame Mounting Block
- Two (2) TREX 600 Series Stainless Steel Lower Stabilizer Mount Adapters
- Two (2) M3 x 0.5 x 16 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Two (2) M3 Flat Washers (Stainless Steel)
- Four (4) M3 x 0.5 Nylon-Insert Locknuts (Zinc-Plated Class 8 Alloy Steel)

Finish:
Clear anodize, mirror-polish CNC gloss

Weight:
Rear Frame Mounting Block: 4 g (design is FEA optimized for maximum strength and minimum weight)
Lower Stabilizer Mount Adapters: 2 g ea. (design is FEA optimized for maximum strength)
