AT600N-TBBVMS TAIL BOOM BRACE VIBRATION MANAGEMENT SYSTEM

AT700-MRHFB FLYBARLESS MAIN ROTOR HOUSING

Breve descrizione

AT700-MRHFB FLYBARLESS MAIN ROTOR HOUSING

Disponibilità: Disponibile

Prezzo di listino: 49,40 €

Special Price 35,38 €

Dettagli

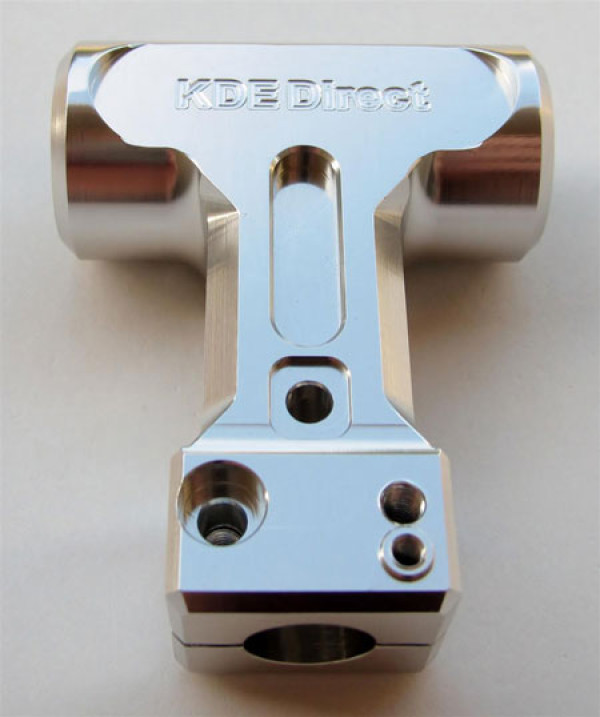

FLYBARLESS MAIN ROTOR HOUSING
FOR ALIGN TREX 700 SERIES HELICOPTERS

Item Number: AT700-MRHFB

Material: Aluminum 6061-T6
Models: all ALIGN TREX 700E, 700N, and 700N E-Conversion series (replaces stock Align part
#HN7095).

Note: the Flybarless Main Rotor Housing upgrade encompasses the latest technologies for optimum setup of the
flybarless mechanics. The new design incorporates a series of performance enhancements including: (1)
direct-mounted washout arms to guarantee true-parallel alignment of the linkage rods and an interaction-free setup to
the main shaft. No more hassles with the main shaft clamp and difficult linkage alignment, simply bolt on the washout
arms and go fly with and optimal setup every flight. (2) M4 clamp mechanism is built into the upgrade design, providing
a solid hold to the main shaft that is truly noticeable in flight with a significant reduction in shaking, bobbing, and other
effects evident under hard 3D flights.

Design Notice: to achieve the best possible setup and perfect
alignment of the flight mechanics, it is recommended to use the
following ALIGN flybarless components with the new design:

Main Shaft (700 Series): H70035, TREX 700FL Main Shaft
Washout Arms: HN7097, TREX 700FL Metal Washout Control Arms
Linkages: HN7100A, TREX 700FL Linkage Rod (A) Set

FLYBARLESS MAIN ROTOR HOUSING
FOR ALIGN TREX 700 SERIES HELICOPTERS

Item Number: AT700-MRHFB
Installation Diagram: CLICK HERE

Price: $78.95
Material: Aluminum 6061-T6
Models: all ALIGN TREX 700E, 700N, and 700N E-Conversion series (replaces stock Align part
#HN7095).

Note: the Flybarless Main Rotor Housing upgrade encompasses the latest technologies for optimum setup of the
flybarless mechanics. The new design incorporates a series of performance enhancements including: (1)
direct-mounted washout arms to guarantee true-parallel alignment of the linkage rods and an interaction-free setup to
the main shaft. No more hassles with the main shaft clamp and difficult linkage alignment, simply bolt on the washout
arms and go fly with and optimal setup every flight. (2) M4 clamp mechanism is built into the upgrade design, providing
a solid hold to the main shaft that is truly noticeable in flight with a significant reduction in shaking, bobbing, and other
effects evident under hard 3D flights.




Includes:
- One (1) TREX 700 Series Aluminum Flybarless Main Rotor Housing
- Two (2) M3 x 0.5 x 14 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)
- Two (2) M4 x 0.5 x 16 mm Socket Head Cap Screws (Class 12.9 BP Alloy Steel)

Finish:
Clear anodize, mirror-polish CNC gloss

Weight:
72 g (design is FEA optimized for maximum strength and minimum weight)
