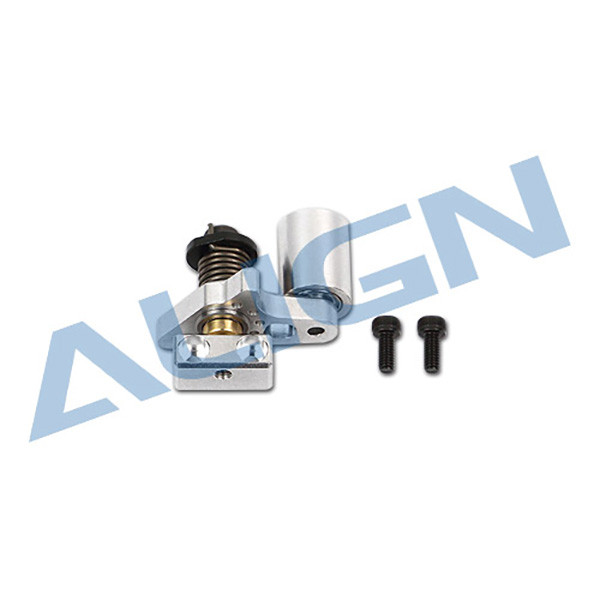

HN70B013XX TN70 Belt Pulley Arm Set

HN70B013XX TN70 Belt Pulley Arm Set

● Suitable for TN70.
● 6061-T6 Aluminum alloy material and CNC processed.
● The tension of the belt can be adjusted through the adjustment hole of the pressure pullet arm, which makes the belt adjustment easier and more convenient.

Specification:
● TN70 Pressure Wheel Spacer Block × 1( 14.5x6.8x6mm)
● TN70 Belt Pulley Arm × 1
● TB70 Belt Tensioner Blot × 1(Φ3xΦ10.8x7.5mm)
● TN70 Belt Device Copper Sleeve × 1(Φ3xΦ5.8x2mm)
● TB70 Belt Tensioner Spring × 1(Φ6.2xΦ7.8x16.6mm)
● Bearing HF683ZZ × 2(Φ3xΦ7x3mm)
● Socket Button head Screw × 1(M3x20mm)
● TN70 Belt Guide Pulley Copper Sleeve × 1(Φ3xΦ4.8x5.5mm)
● MR83ZZ Bearing C1 × 2(Φ3xΦ8x3mm)
● Socket Collar Screw × 1(M3x16mm)
● Socket Screw × 2(M2.5x6mm)
