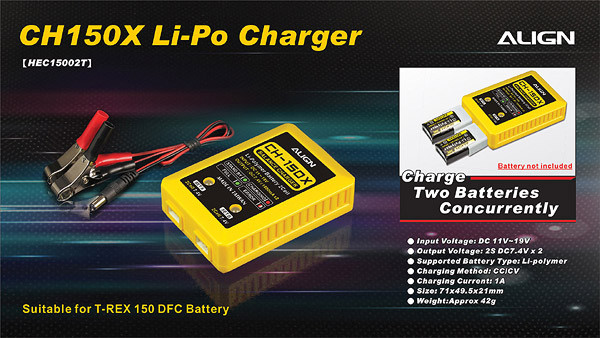

HEC15002 CH150X Li-Po Charger

Instruction:
1. Suitable for DC 11V~19V power input .
2. Apply to 2S Li-polymer batteries.
3. Equipped dual output function, it allows two batteries charging with 1A current in the same time.
4. Balance charging is good to prevent the situation of over-charging or under-charging for a single cell.
5. Auto-detected charge status display.
6. The auto-detected function of low voltage for power storage.
7. Reverse polarity protection and short circuit protection.

NOTE:
1.Do not leave the charger is operating unattended as it may cause a fire.

2.If the battery becomes hot while high current discharging or flying, please do not charge the battery immediately. Wait to cool down(about 20 mins), then inspect to recharge. If against follow the original factory using rules, possibly cause the battery to inflate or any dangerous accident happens.


Specification:
• Input Voltage: DC 11V~19V
• Output Voltage: 2S DC 7.4V
• Input current : Recommended 1.5A or more
• Supported Battery Type: Li-polymer
• Charging Method: CC/CV
• Charging Current: 1A
• Size: 71x49.5x21mm
• Weight:Approx 42g


Accessories:
• CH150X Li-po Charger x 1
• Power cord x 1
