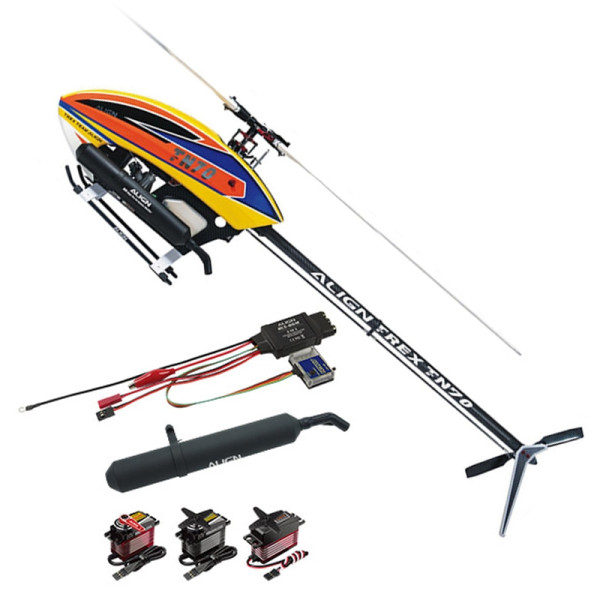

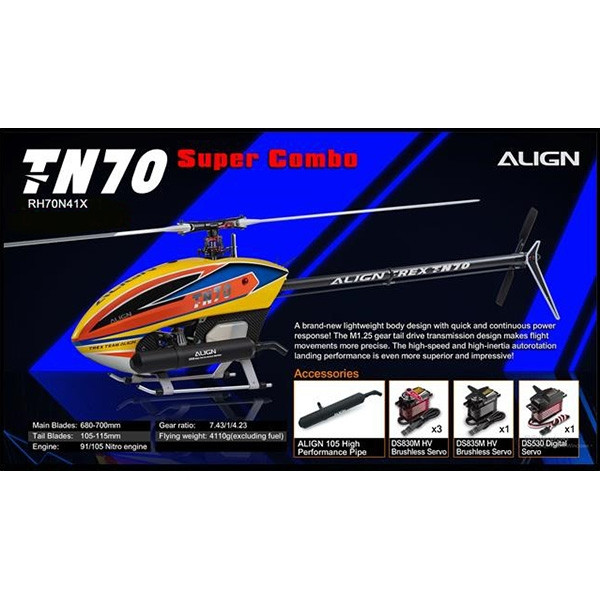

RH70N41X TN70 Super Combo

Electric equipment

● DS830M High Voltage Brushless Servo x 3
● DS835M High Voltage Brushless Servo x 1
● DS530 Digital Servo x 1
● B6M 2 In 1 Voltage Regulator Combo x 1
● MICROBEAST² Flybarless system x 1
● Governor Sensor x 1
● ALIGN 105 High Performance Pipe x 1

Specification

● Length: 1352mm
● Height: 397mm
● Width: 202mm
● Main Blade Length: 690mm
● Main Rotor Diameter: 1543mm
● Tail Rotor Diameter: 279mm
● Tail Drive Belt Pulley:27T
● Main Drive Gear:107T
● Autorotation Tail Drive Gear: 102T
● Tail Drive Gear: 23T
● Gear Ratio: 7.43:1:4.23
● Engine: 105 Nitro Engine
● Fuel Tank Capacity: 630cc.
● Takeoff Weight: Approx. 4110g

Accessories

● TN70 Kit Set x 1 set
● 690 Carbon Fiber Blades x 1 set
● 105 Carbon Fiber Tail Blades x 1 set
● ALIGN 105 High Performance Pipe x 1
● DS830M High Voltage Brushless Servo x 3
● DS835M High Voltage Brushless Servo x 1
● DS530 Digital Servo x 1
● B6M 2 In 1 Voltage Regulator Combo x 1
● MICROBEAST² Flybarless system x 1
● Governor Sensor x 1

Radio transmitter and electronic equipment required for assembly

● Transmitter(7-channel or more, helicopter system)
● Receiver(7-channel or more) or Remote Receiver
● 105 Nitro Engine x 1
● Engine starter x 1
● Fuel pump x 1
● Engine fuel x 1
● Digital Pitch Gauge
● Multi-function Tester
● 2S1P 7.4V Li-Po 1900~2600mAh Battery x 1
