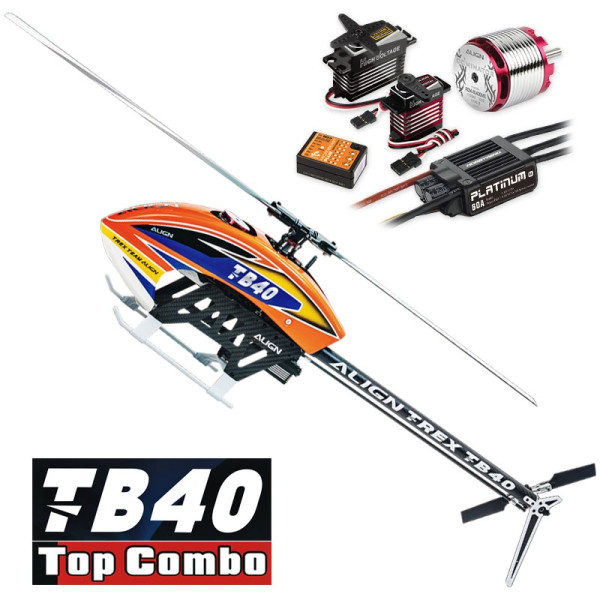

Align TB40 Top Combo RH40E01X

Electric equipment

● 60A Brushless ESC x 1
● 400MX Brushless Motor(1100KV/3220) x 1
● DS450M Digital Servo x 3
● DS535M Digital Servo x 1
● MICROBEAST Flybarless System x 1

Specification

● Length: 747mm
● Height: 223mm
● Width: 103mm
● Main Blade Length: 380mm
● Main Rotor Diameter: 851mm
● Tail Length: 70mm
● Tail Rotor Diameter: 188mm
● 400MX Brushless Motor(1100KV/3220)
● Motor Belt Pulley: 22T
● Drive Gear Ratio: 6.44:1:4.04
● Max RPM(approx.): 3400RPM
● Frame Weight(Batteries not included): Approx. 953g

Accessories

● TB40 Kit Set x 1 set
● 380 Carbon Fiber Blades x 1 set
● 70 Carbon Fiber Tail Blades x 1 set
● 400MX Brushless Motor(1100KV/3220) x 1
● DS450M Digital Servo x 3
● DS535M Digital Servo x 1
● 60A Brushless ESC x 1
● MICROBEAST² Flybarless System x 1

Radio transmitter and electronic equipment required for assembly

● Transmitter(6-channel or more, helicopter system)
●Receiver(6-channel or more)
● RCC-6CX Intelligent Balance Charger
● 22.2V 6S 1850~2200mAh Li-Po Battery
● Digital Pitch Gauge
● Multi-function Tester
