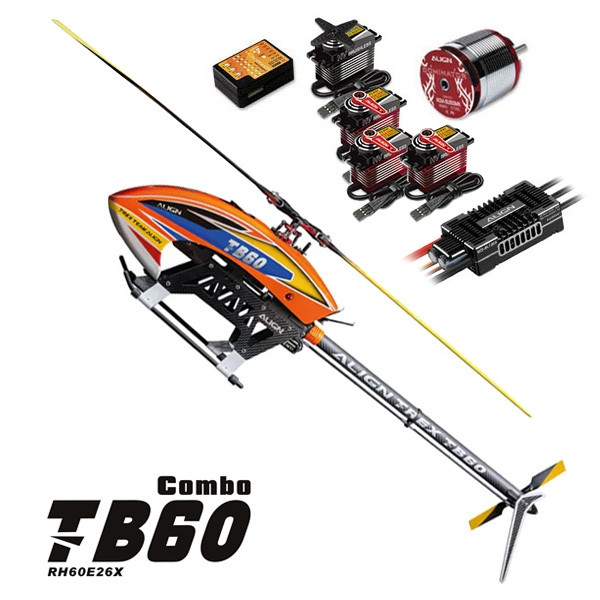

Align T-Rex TB60 6S Combo RH60E26X

Electric equipment

● RCE-BL150A Brushless ESC x 1
● 750MX Brushless Motor(930KV/4236) x 1
● DS830M High Voltage Brushless Servo x 3
● DS835M High Voltage Brushless Servo x 1
● MICROBEAST² Flybarless System x 1

Specification

● Length: 1218mm
● Height: 353mm
● Width: 183mm
● Main Blade Length: 600mm
● Main Rotor Diameter: 1339mm
● Tail Length: 95mm
● Tail Rotor Diameter: 253mm
● Motor Belt Pulley: 23T
● Belt Pulley: 44T
● Front Drive Main Shaft: 15T
● Main Drive Gear: 62T
● Autorotation Tail Drive Gear: 28T
● Tail Drive Gear: 23T
● Drive Gear Ratio: 7.89:1:5.04
● Max RPM(approx.): 2300RPM
● Weight(w/o Batteies): Approx. 2.8kg

Accessories

● TB60 Kit Set x 1 set
● 600 Carbon Fiber Blades x 1 set
● 95 Carbon Fiber Tail Blades x 1 set
● 750MX Brushless Motor(930KV/4236) x 1
● DS830M High Voltage Brushless Servo x 3
● DS835M High Voltage Brushless Servo x 1
● RCE-BL150A Brushless ESC x 1
● MICROBEAST² Flybarless System x 1
● Lube Pack x 1

Radio transmitter and electronic equipment required for assembly

● Transmitter(6-channel or more, helicopter system)
● Receiver(6-channel or more) or Remoet Receiver
● RCC-6CX Intelligent Balance Charger
● 6S Li-Po 2600 ~ 4600mAh x 2 (3300mAh suggestion)
● Digital Pitch Gauge
● Multi-function Tester
