DS525M Digital Servo HSD52501

DS525M Digital Servo

Instruction:

• Coreless Motor Design for fast speed, high efficiency, and low power consumption.
• 10 Bits signal resolution for smooth movements.
• Response time of 0.08s/60°. High rigidity metal gears with high precision and durable structure characteristics.
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo's high efficiency.
• Supports digital & analog control signal.
• Powerful and precise servo suitable for T-Rex 500 CCPM cyclic and rudder servo use.


Specification:

• Stall torque:2.4kg.cm(4.8V)
3.0kg.cm(6.0V)
• Motion speed:0.08sec/60°(4.8V)
0.06sec/60°(6.0V)
• Rating voltage:DC 4.8-6V
• Temperature range:-20°C~+60°C
• Dimension:35.1 x 15.1 x 29mm
• Weight:29g
• 1520?s standard band

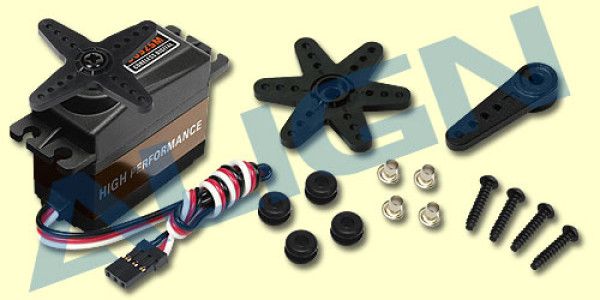

Accessories:
• Servo rudder piece x 2
• Set screw x 1
• Rubber damper x 4
• Brass grommet x 4
• • Socket button head tapping screw(T2.6x12mm) x 4
• D5AF Servo horn x 1
