HE50H09 Align RCE-G600 Engline Governor for Align T-Rex 600

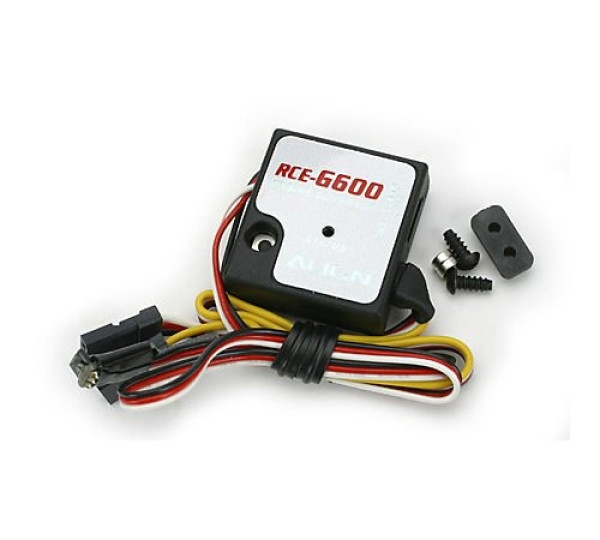

Align RCE-G600 Engline Governor  for Align T-Rex 600
● Compact design, easy use, simple setting with great speed control performance.
● Speed resolution: 0.1RPM
● Speed stability accuracy: within 1%(Steady State)
● Not apply to S9251、S9256 and other 760μs servos.

Specifications:
● Operating voltage:DC4.5V-6V
● Consumption current:<20mA@4.8V
● Direct detection of engine rotation speed.
● Speed control range:10500~21000RPM
● Servo RWM output pulse width: 1~2ms，not apply to S9251、S9256 and other 760μs servos.
● Operating temperature range:-20°C~85°C
● Operating moisture range:0%~95%
● Case size(body):28.5x26.2x9mm
● Signal wire length:160mm
● Sensor wire length:250mm
● Weight:10g(including wires)

Accessories:
● RPM Magnet x 2(Φ4x1.5mm)
● Socket button head screw x 2(T2.6x6mm)
● Nut x 1
