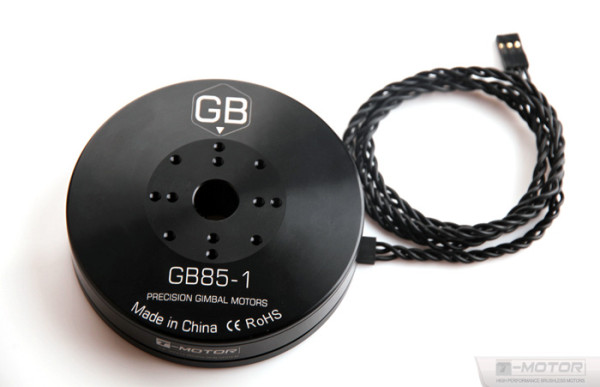

GB85-1 T-Motor GB85-1 Gimbal Motors

GB85-1 Specifications:



MOTOR'S TORSION (KG.CM)/V ..........................................................................6KG/4S

Configuration (pole)....................................................................................36N42P

STATOR Fixed hole's site (quantities-diameter) ............................................à¸32mm(4-M4)/à¸30mm(4-M3)

ROTOR Fixed hole's site (quantities-diameter)...........................................à¸35mm(8-M3)/à¸25mm(4-M3)

Shaft Diameter........................................................................................12.7mm

Motor Dimensions (Outer*Height)...................................................à¸86.8*22.5(mm)

Weight.................................................................................................240g

No.of Cells(Lipo)......................................................................................4-6S

Internal resistance...............................................................................138mΩ

Wire length (including JR plug).............................................................45cm
