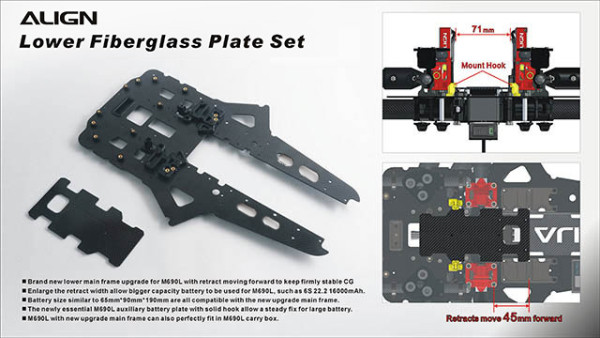

M480037XX M690L Lower Fiberglass Plate Set

M480037XX Lower Fiberglass Plate Set
Up-grade speciale per montare batterie di maggiori dimensioni
Instruction:
• Suitable for M690L.
• Must with M480 Main Battery Plate(M480006AXW).
• Brand new lower main frame upgrade for M690L with retract moving 45mm forward to prevent against body dip to the front.
• Enlarge the retract width to 71mm while the original width is 56mm only. It allow a bigger capacity battery to be used for M690L, such as 6S 22.2 16000mAh.
• The newly essential M690 auxiliary battery plate with solid hook allow a steady fix for large battery.
• M690L with new upgrade main frame can also perfectly fit in M690 carry box.

Specification:
• M480 Lower Fiberglass Plate x 1
• M690 Auxiliary Battery Plate x 1
• M470 Frame Mounting Bolt x 4(M2.5x28mm)
• Socket Screw - Nylok x 14(M2.5x6mm)
• Socket Screw - Nylok x 8(M2.5x10mm)
• Socket Collar Screw - Nylok x 2(M3x8mm)
• Flat Head Socket Cap Screw - Nylok x 4(M2.5x6mm)
• Washer x 8(Ø2.5xØ7x1mm)
