DJI 5.8G Video Downlink Transmitter Lite Module AVL58

DJI 5.8G Video Downlink Transmitter Lite Module
The DJI 5.8GHz AV Wireless video downlink is specially designed for all pilots for fun or FPV with DJI Naza, DJI WKM or ACE ONE autopilot system. Recommended for the DJI Phantom 1 and Phantom 2 quadcopters.


What's included:

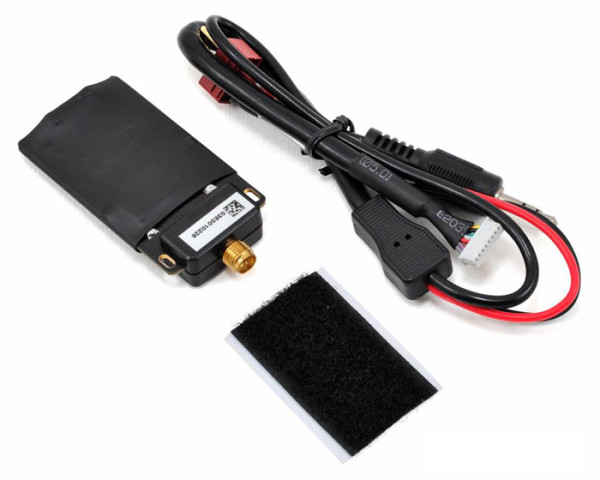

1 x DJI 5.8G Video link transmitter with mount and connection cable.

DJI 5.8GHz video link features:
• Working frequency 5.8GHz with 8 channels
• Long range and stable transmission (1.2Km)
• Works with DJI clover leaf antenna
• Supports RSMA antenna connectors
• Remote channel switch via DJI iOSD
• Weighs 13g

Performance Parameters
Outdoor/RF Line-of-Sight Range: 1.2Km
Transmit Power: 28dBm  ±1dBm
Receiver Sensitivity (1%PER): -90dBm ±2dBm
Frequency Band: • CH1: 5705MHz   • CH5: 5885MHz
• CH2: 5685MHz   • CH6: 5905MHz
• CH3: 5665MHz   • CH7: 5925MHz
• CH4: 5645MHz   • CH8: 5945MHz
Physical Parameters
Operating Temperature: -20~70°C (-4~158°F)
Size (Without antenna): TX: 50mm×30mm×22mm (1.97"×1.18"×0.87")
RX: 55.5mm×48mm×17mm (2.19"×1.89"×0.67")
Weight (Without antenna): TX: 39g (1.4 oz.)
RX: 49.5g (1.75 oz.)
Hardware Supported
Antenna Options: SMA
Supply Voltage: 3S~6S LiPo
Transmitter Current: 1050mA ±50mA @6V   860mA ±50mA @8V
680mA ±50mA @10V   575mA ±50mA @12V
Receiver Current: 160mA ±10mA @6V   125mA ±10mA @8V
103mA ±10mA @10V   90mA ±10mA @12V
Software Supported
Built-in Functions: 5.8GHz Broadband FM video transmit & receive synchronously
Analog video output to display
8 transmitting and receiving channels
