Hollyland Cosmo 400 Wireless HDMI/SDI HD Sistema di Video Transmissione senza fili

Hollyland COSMO 600 Wireless HDMI/SDI Sistema di Video Transmissione

Breve descrizione

Hollyland COSMO 600 Wireless HDMI/SDI Transmission System COSMO-600

Disponibilità: Non disponibile

1.952,00 €

Dettagli

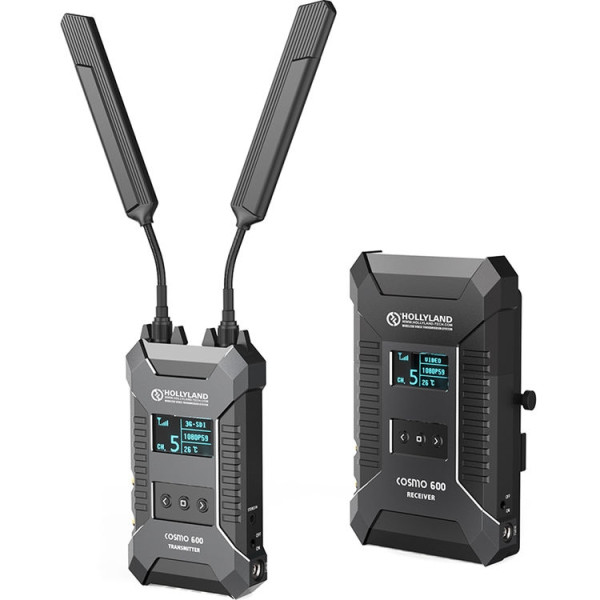

Hollyland COSMO 600 Wireless HDMI/SDI

Con un design più leggero e sottile rispetto al COSMO 400, l'Hollyland COSMO 600 consente di trasmettere un segnale HDMI / SDI fino a 600 'a un'uscita HDMI o doppia SDI. Il set trasmettitore / ricevitore supporta segnali fino a 1080p60 con latenza <1 ms. Il trasmettitore offre anche un loop out SDI e un ingresso audio stereo da 3,5 mm. Il sistema funziona sulla banda di frequenza da 5,1-5,9 GHz e utilizza la crittografia AES-128 per la consegna live sicura del video. Altre caratteristiche includono uno schermo OLED su entrambe le unità, il timecode e la sincronizzazione automatica con la registrazione della videocamera.

Il trasmettitore viene fornito con una piastra della batteria della serie L e il ricevitore è dotato di una piastra di montaggio a V. Inoltre, i cavi D-Tap a LEMO sono inclusi per alimentare entrambi i dispositivi con batterie compatibili. Il trasmettitore utilizza due antenne mentre il ricevitore ha un'antenna incorporata. Per il trasmettitore sono fornite tre antenne altamente flessibili che sono meno disposte a danni accidentali, una di scorta e due antenne a fungo come sostituti di quelle standard.

Transmitter

Transmission Range 600' / 183 m line-of-sight
Latency <1 ms
Connections 1 x HDMI type A input
1 x 3G/HD/SD-SDI input
1 x 3G/HD/SD-SDI loop out
Input Resolution 1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50

3G/HD/SD-SDI auto-selected, SMPTE-259/274/292/296/372/424/425
Supported Audio 1 x 3.5 mm stereo input
Embedded 2-channel 24-bit/48 KHz
Frequency 5.1-5.9 GHz
Antenna Support 2 x RP-SMA male ports
Modulation OFDM 16QAM
Transmission Power 17 dBm max
Bandwidth 40 MHz
Encryption AES-128 encryption
Display OLED
Firmware Upgradable Mini USB port
Battery Plate L-series
Power Input Connection 4-pin LEMO female
Power Input 7-36 VDC
Power Consumption <6 W
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature Not specified by manufacturer
Dimensions 5 x 2.75 x 1" / 12.7 x 7 x 2.5 cm (not including antennas)
Weight 9.2 oz / 260 g


Receiver

Transmission Range 600' / 183 m line-of-sight
Latency <1 ms
Output 1 x HDMI type A output
2 x 3G/HD/SD-SDI
Output Resolution 1080p: 60/59.94/50/30/29.94/25/24/23.98
1080i: 60/59.94/50
720p: 60/59.94/50
480p: 60
576p: 50

3G/HD/SD-SDI auto-selected, SMPTE-259/274/292/296/372/424/425
Supported Audio Embedded 2-channel 24-bit/48 KHz
Frequency 5.1-5.9 GHz
Antenna Built-in
Modulation OFDM 16QAM
Receiver Sensitivity -75 dBm
Bandwidth 40 MHz
Encryption AES-128 encryption
Display OLED
Firmware Upgradable Mini USB port
Battery Plate V-mount
Power Input Connection 4-pin LEMO female
Power Input 7-36 VDC
Power Consumption <8 W
Operating Temperature 32 to 104°F / 0 to 40°C
Storage Temperature Not specified by manufacturer
Dimensions 6.3 x 3.7 x 1" / 15.9 x 9.4 x 2.5 cm
Weight 1 lb / 460 g


Packaging Info

Package Weight 8.8 lb
Box Dimensions (LxWxH) 15.75 x 12.75 x 6.0"
