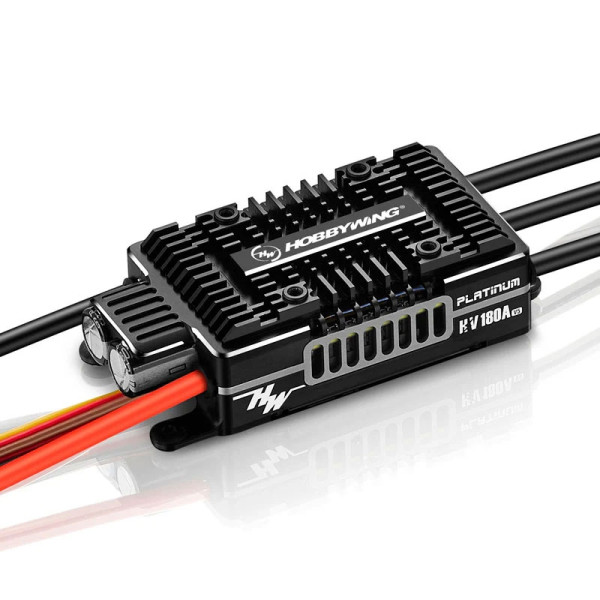

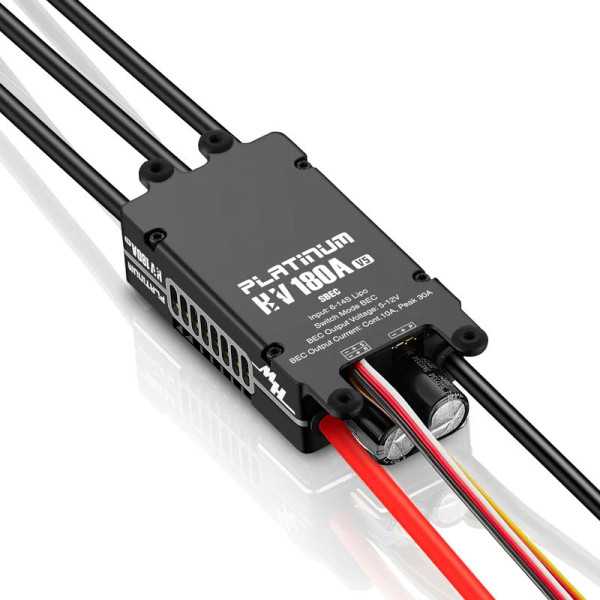

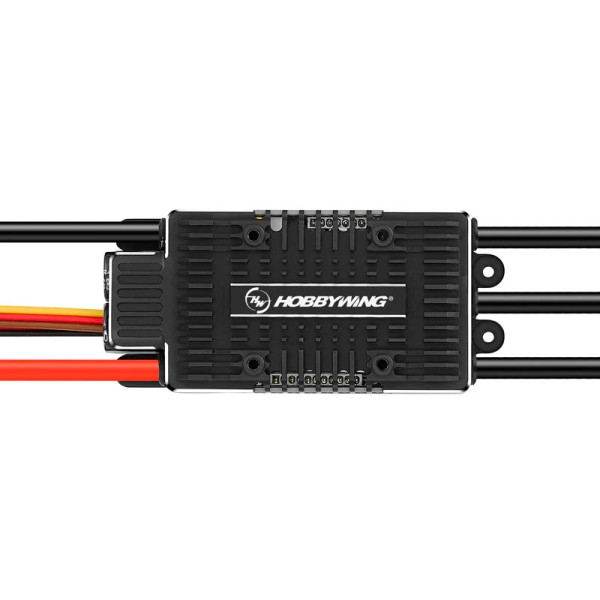

30209103 HobbyWing Platinum PRO 180A HV SBEC V5 ESC

Platinum 180A HV V5 ESC


Specifications

Telemetry Function: Mikado VBar；Futaba S.Bus2；MSH iKon；Brain and etc.
Model 180A HV
p/n 30209103
Application 550-700 class electric helicopter (main rotor length 550-700mm),or fixed-wing
Input (V) Lipo 6-14S
Cont./Peak Current (10s) 180A/260A
BEC (Switch mode)
5-12V adjustable (step: 0.1V) 10A/30A Cont./Peak
Separate Programming Port Tunalyzer / LCD Program Box / OTA Programmer
Input wires Red-10AWG-150mm
Black-10AWG-150mm
Output wires Black-10AWG-100mm
Output connector Gold connector
Mounting-holes
M3, 16.5* 90x34mm
size 100.6 x 45.5 x 26.1 mm

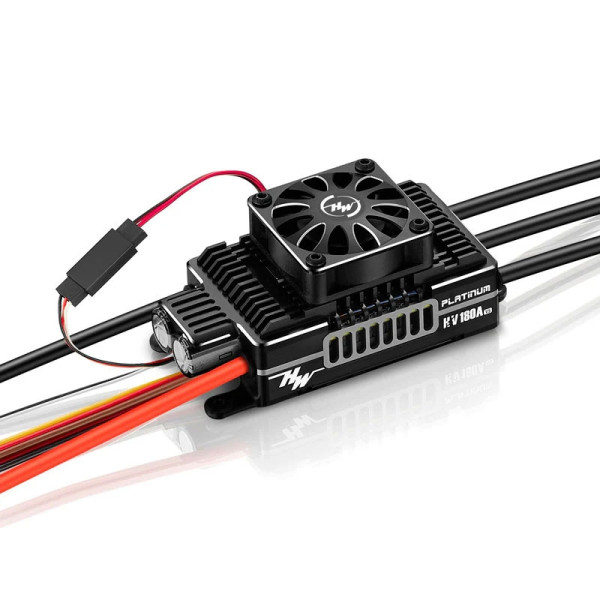

Weight 250.6g (Without Fan)
