SII-3008-1220 Scorpion SII-3008-1220kv Motor

Precedente

HK-5025-440KV Scorpion HK-5025-440KV

SII-2215-900 Scorpion SII-2215-900kv Motor

Breve descrizione

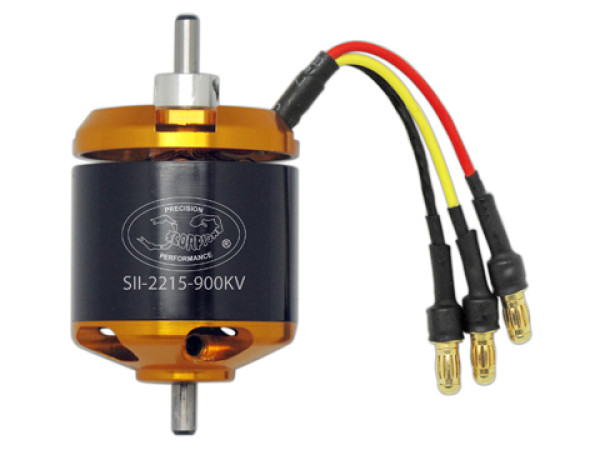

SII-2215-900 Scorpion SII-2215-900kv Motor

Disponibilità: Disponibile

Prezzo di listino: 77,17 €

Special Price 45,14 €

Dettagli

Scorpion SII-2215-900KV (V2)New [SII-2215-900KV]

Scorpion Competition Series Brushless Motors are built from the best materials available, and are designed to provide both quality and performance at an affordable price. The new SII-22 series motors are an updated and improved version of the popular S22 motors that have been so successful. Scorpion starts with high quality aluminum alloy parts that are produced on the latest CNC milling machines. These parts are then gold Electro-Plated to provide a beautiful, long-lasting finish. The stators are made with 0.2mm laminations to give maximum efficiency, and minimum Eddy current losses. The stators are epoxy coated to prevent shorts, and are wound with wire that is rated at 180 degrees C (356 F). The magnets used in Scorpion Motors are custom manufactured to be able to withstand temperatures of up to 200 degrees C (392 F).

All Scorpion 22mm motors come with 3.5mm male Bullet style connectors already attached, and include a complete hardware package that contains the following: 3 matching female Bullet connectors for your speed controller, a cross style back plate mount with 4 screws, and a threaded shaft prop adapter.
Scorpion Motors are built to last, and are backed with a 2-Year warranty against defects in materials or workmanship. For the best overall combination of quality, performance, and value, gives Scorpion Motors a try!


Specifications

Stator Diameter 22.0 mm (0.87 in)
Stator Thickness 15.0 mm (0.59 in)
No. of Stator Arms 12
Magnet Poles 14
Motor Wind 19 Turn Delta
Motor Wire 4-Strand 0.21mm
Motor Kv 900 RPM / Volt
No-Load Current (Io/10V) 0.52 Amps
Motor Resistance (Rm) 0.142 Ohms
Max Continuous Current 16 Amps
Max Continuous Power 180 Watts
Weight 68.6 Grams (2.42 oz)
Outside Diameter 27.9 mm (1.13 in)
Shaft Diameter 2.98 mm (0.12 in)
Body Length 33.0 mm (1.3 in)
Overall Shaft Length 52.0 mm (2.04 in)
Max Lipo Cell 3s
Motor Timing 5deg
Drive Frequency 8kHz


Included in the Box

1 x Scorpion SII-2215-900KV Motor
1 x Scorpion 22mm Cross Mount
1 x Scorpion 3mm Threaded Prop Adapter
3 x Female Connectors
3 x Heat Shrink
4 x M3 Screws

Weight including packaging: 174.8g
