Ingranaggi Servo speciale 6100G LTS-6100G-GEAR

Sistema 3G Align 3G-ALIGN complet set GYRO

Breve descrizione

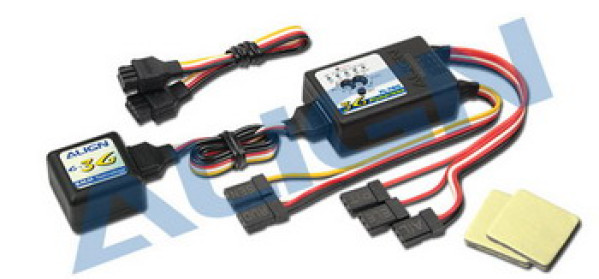

Sistema 3G Align complet set 3G-ALIGN

Disponibilità: Non disponibile

Prezzo di listino: 71,98 €

Special Price 52,46 €

Dettagli

Sistema 3G Align elettronica

3-axis gyroscopic flybarless system to simulate the stability of mechanical flybar system, yet at the same time achieving agile 3D performance.
Utilizes Silicon Micro Machine (SMM) sensors for excellent stability.
12 bit processors providing ultra high resolution, resulting in highly precise controls
Software upgradable through PC interface adapter
(sold separately)
Simplistic setup process without the need of external devices. Setup is done through 5 steps and 2 sensitivity adjustments. Rudder setup is identical to GP780 gyro, minimizing learning curve.
Flybarless system dramatically improves 3D power output and efficiency, resulting in reduced fuel or electricity consumption.
Highly sensitive gyroscopic sensors combined with advanced control detection routine providing higher hovering and aerobatic stability than other flybarless system.
Suitable for all CCPM and mechanical mixing system.
Comaptible with helicopter of all sizes from T-Rex 250 to T-Rex 700.
Innovative Pitch Gau as an aid to facilitate pitch adjustments.
High frame rate signal output for faster and higher precision servo response.
Capable to operate between 4.5V to 8.4V, compatible with high voltage servos.
Small footprint, light weight, minimalists and reliable design.


Specification:
Suitable Voltage Range:DC 4.5~8.4V
Current Comsumption:<80mA @ 4.8V
Flip and Roll rate detection speed: :±300degrees/sec
Rudder rate detection speed:±500degrees/sec
Sensor resolution: 12bit
Operating temperatur:0?~65?
Operating humidity:0%~95%
RoHS certified
Dimension:
Control box:42x26.5x14.5mm
Sensor:22.3x21.7x14mm
Weight:
Control box:16g
Sensor:9g
