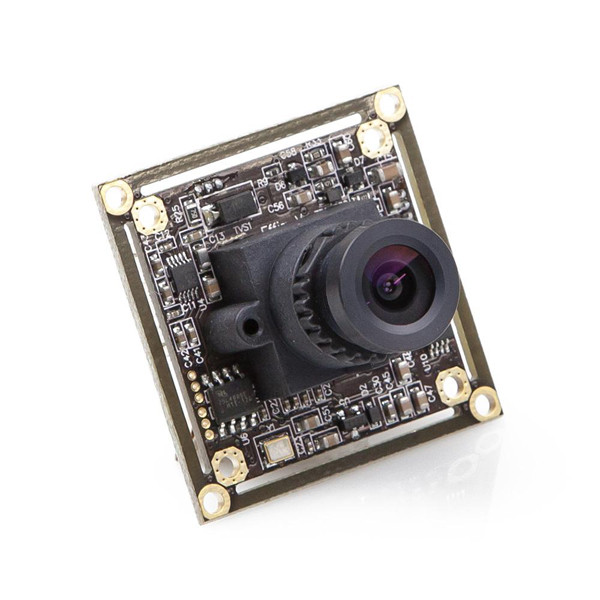

KDS Kylin Camera HD 800TVL

KDS HD Camera 800TVL KF-800TVL, For the KDS Kylin 250 FPV Racer and all other FPV aircraft
This professional camera utilizes Sony's 960H Double Scan CCD, and Effio-V 4141GG DSP (advanced version of Effio-P) which can produce an image of 800TVL high resolution. 3D-DNR (Digital Noise Reduce) and Auto AGC or AGC+ slow shutter (sense up). It ships with a wide angle 2.8mm lens, useful for FPV.
Features
    Blocks IR light for better color
    Color 800TVL High Picture Quality
    Sony 960H Double Scan CCD and Effio-V 4141GG DSP
    Default 2.8mm lens
    Removable OSD menu
    S-WDR
    DNR (Digital Noise Reduction)
    Low Power Consumption
    Back light compensation (BLC)
    Image mirroring functionality
    Anti-exposure function
    Low illumination: 0.01Lux
    White dot repair
    Weight: Board camera alone 15g
    Over current protection, electrical surge protection and lightning protection
    DC 9V-12V Power input (3s Lipo battery)

Note:
If not used with Kylin250, polarity must be reversed!
